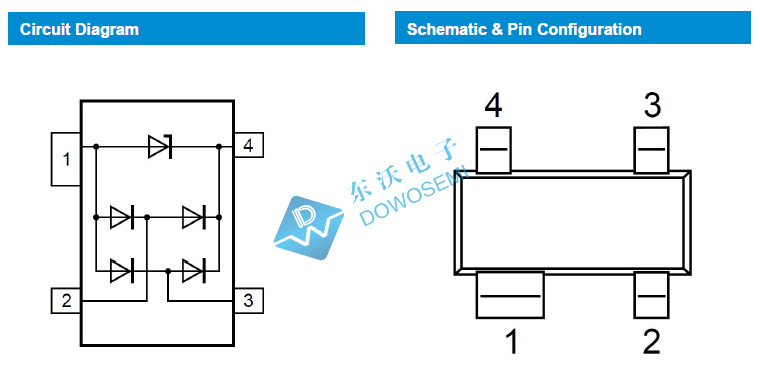

前段時間，經常有客戶向東沃電子咨詢ESD靜電保護芯片PRTR5V0U2X參數、中文資料。查閱?wèn)|沃電子PRTR5V0U2X二極管產品手冊可知，PRTR5V0U2X是低結電容軌到軌靜電放電（ESD）保護二極管，小型SOT-143貼片封裝，主要保護兩條高速數據或者高頻率信號線免受靜電放電和其他瞬變的影響。接下來，讓我們一起從特性、參數、應用等方面深入地了解低結電容ESD二極管PRTR5V0U2X。

ESD保護芯片PRTR5V0U2X特性

·IEC61000-4-2 (ESD) ±15kV (air), ±15kV (contact)
·IEC61000-4-4 (EFT) 40A (5/50ns)
·IEC61000-4-5 (Surge) 5A (8/20μs)
·Protects two I/O line
·Ultra-low capacitance: CJ =0.8pF Max
·Low operating and clamping voltage
·Low leakage current
·Solid-state silicon technology

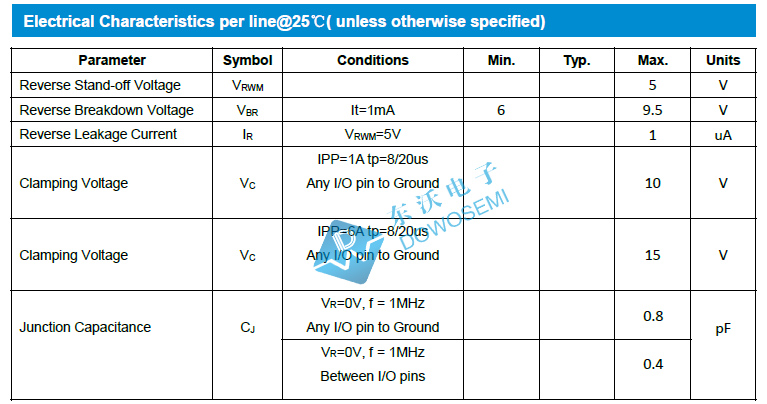

ESD保護芯片PRTR5V0U2X參數

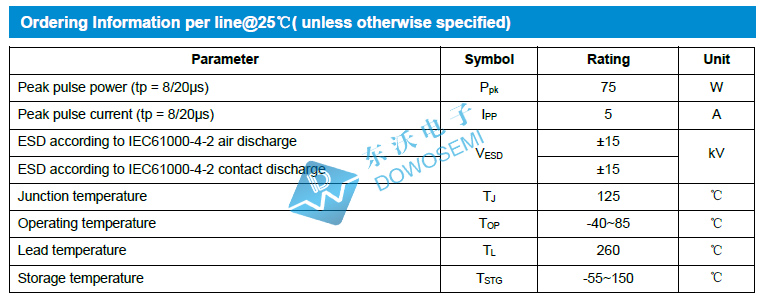

峰值脈沖功率Peak pulse power (tp = 8/20μs): 75W
峰值脈沖電流Peak pulse current (tp = 8/20μs): 5A
工作電壓Reverse Stand-off Voltage: 5V
擊穿電壓Reverse Breakdown Voltage (Min.): 6V
漏電流Reverse Leakage Current: 1uA
鉗位電壓Clamping Voltage ( IPP=6A tp=8/20us Any I/O pin to Ground ): 15V
電容Junction Capacitance (VR=0V, f = 1MHz Between I/O pins): 0.4pF

ESD保護芯片PRTR5V0U2X應用

·USB 2.0
·Digital Video Interface (DVI) / High Definition Multimedia Interface (HDMI) interfaces
·Mobile and cordless phones
·Personal Digital Assistants (PDA)
·Digital cameras
·PCs, notebooks, printers and other PC peripherals
